오토인코더(AutoEncoder, AE)

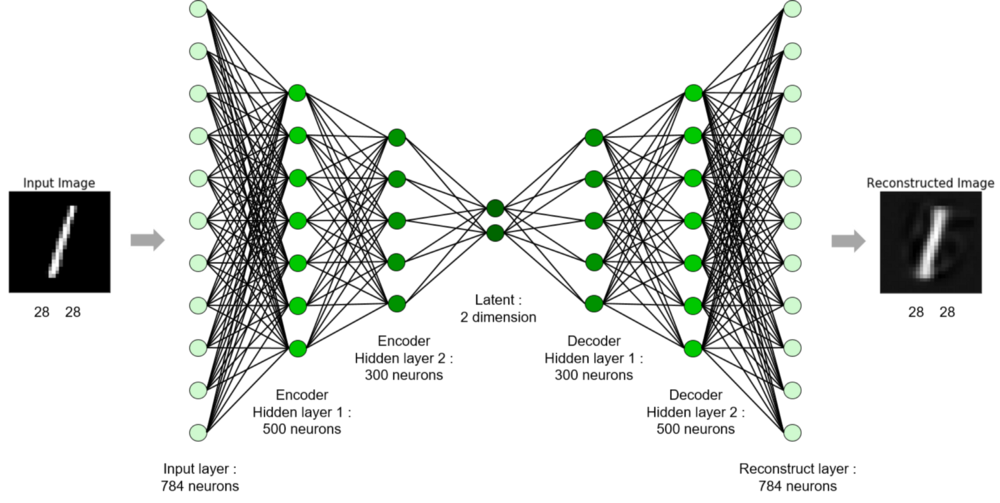

오토인코더는 인코더(encoder)와 디코더(decoder)로 이루어진 신경망입니다. 인코더는 고차원의 입력 데이터를 저차원의 표현 벡터(representation vector)로 압축하며, 디코더는 압축을 해제하여 복원합니다. 즉 신경망의 출력은 입력 데이터에 대해 재구성된 것입니다. 이러한 입력과 출력 간의 손실을 최소화하는 방향으로 학습하며 레이블없는 데이터를 사용하는 비지도학습(unsupervised learning)입니다.

군집화(Clustering)

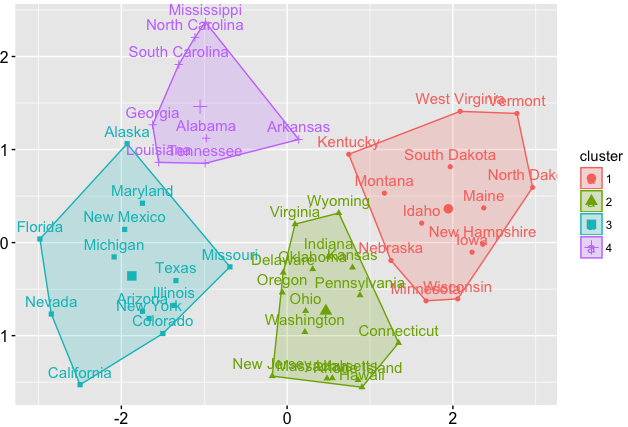

인코더의 출력은 고차원의 입력 데이터에 대한 압축되어진 특징이라고 할 수 있습니다. 이를 2차원 벡터로 하여 산점도로 표현하면 다음과 같습니다.

이는 비슷한 특징을 가진 데이터 간에 군집을 이루며 분류되는 것입니다.

이러한 특징을 이용하여 입력 데이터에 대해 재구성하는 것이 디코더의 역할입니다.

구현

오토인코더 모델을 구현합니다,

MNIST 데이터셋을 불러옵니다.

import numpy as np
from tensorflow.keras import datasets

(x_train, y_train), (x_test, y_test) = datasets.mnist.load_data()

x_train = x_train.reshape(-1, 28, 28, 1)
x_test = x_test.reshape(-1, 28, 28, 1)

print(x_train.shape)
print(x_test.shape)

신경망을 정의합니다.

import numpy as np
import tensorflow as tf


class Encoder:
    def __init__(self, input, training):
        with tf.name_scope('layer'):
            conv1 = tf.layers.conv2d(input, 32, 3, 1, padding='same')
            conv1 = tf.layers.batch_normalization(conv1, training=training)
            conv1 = tf.nn.leaky_relu(conv1)

            conv2 = tf.layers.conv2d(conv1, 64, 3, 2, padding='same')
            conv2 = tf.layers.batch_normalization(conv2, training=training)
            conv2 = tf.nn.leaky_relu(conv2)

            conv3 = tf.layers.conv2d(conv2, 64, 3, 2, padding='same')
            conv3 = tf.layers.batch_normalization(conv3, training=training)
            conv3 = tf.nn.leaky_relu(conv3)

            conv4 = tf.layers.conv2d(conv3, 64, 3, 1, padding='same')
            conv4 = tf.layers.batch_normalization(conv4, training=training)
            conv4 = tf.nn.leaky_relu(conv4)

            flat = tf.layers.flatten(conv4)

        with tf.name_scope('output'):
            self.output = tf.layers.dense(flat, 2)

class Decoder:
    def __init__(self, input, training):
        with tf.name_scope('layer'):
            fc = tf.layers.dense(input, 3136)
            reshape = tf.reshape(fc, [-1, 7, 7, 64])

            conv_tran1 = tf.layers.conv2d_transpose(reshape, 64, 3, 1, padding='same')
            conv_tran1 = tf.layers.batch_normalization(conv_tran1, training=training)
            conv_tran1 = tf.nn.leaky_relu(conv_tran1)

            conv_tran2 = tf.layers.conv2d_transpose(conv_tran1, 64, 3, 2, padding='same')
            conv_tran2 = tf.layers.batch_normalization(conv_tran2, training=training)
            conv_tran2 = tf.nn.leaky_relu(conv_tran2)

            conv_tran3 = tf.layers.conv2d_transpose(conv_tran2, 64, 3, 2, padding='same')
            conv_tran3 = tf.layers.batch_normalization(conv_tran3, training=training)
            conv_tran3 = tf.nn.leaky_relu(conv_tran3)

            conv_tran4 = tf.layers.conv2d_transpose(conv_tran3, 32, 3, 1, padding='same')
            conv_tran4 = tf.layers.batch_normalization(conv_tran4, training=training)
            conv_tran4 = tf.nn.leaky_relu(conv_tran4)

        with tf.name_scope('output'):
            self.output = tf.layers.conv2d_transpose(conv_tran4, 1, 3, 1, padding='same', activation=tf.nn.sigmoid)

class Model:
    def __init__(self, lr=1e-3):
        tf.reset_default_graph()

        with tf.name_scope('input'):
            self.input = tf.placeholder(tf.float32, [None, 28, 28, 1])
            self.training = tf.placeholder(tf.bool)

        with tf.name_scope('preprocessing'):
            input_norm = self.input / 255.0

        self.encoder = Encoder(input_norm, self.training)
        self.decoder = Decoder(self.encoder.output, self.training)

        with tf.name_scope('loss'):
            self.loss = tf.losses.mean_squared_error(input_norm, self.decoder.output)

        update_ops = tf.get_collection(tf.GraphKeys.UPDATE_OPS)
        with tf.name_scope('optimizer'):
            train_op = tf.train.AdamOptimizer(lr).minimize(self.loss)
            self.train_op = tf.group([train_op, update_ops])

        self.sess = tf.Session()
        self.sess.run(tf.global_variables_initializer())

    def encode(self, x):
        return self.sess.run(self.encoder.output, {self.input: x, self.training: False})

    def decode(self, x):
        return self.sess.run(self.decoder.output, {self.input: x, self.training: False})

    def train(self, x_train, epochs, batch_size=32):
        data_size = len(x_train)
        for e in range(epochs):
            t_l = []
            idx = np.random.permutation(np.arange(data_size))
            _x_train = x_train[idx]
            for i in range(0, data_size, batch_size):
                si, ei = i, i + batch_size
                if ei > data_size:
                    ei = data_size

                x_batch = _x_train[si:ei, :, :]

                _, loss = self.sess.run([self.train_op, self.loss], {self.input: x_batch, self.training: True})
                t_l.append(loss)

            print('epoch:', e + 1, '/ loss:', np.mean(t_l))

모델을 학습합니다.

model = Model(lr=5e-4)
model.train(x_train, epochs=10)

epoch: 1 / loss: 0.050720453
epoch: 2 / loss: 0.044929303
epoch: 3 / loss: 0.043423332
epoch: 4 / loss: 0.042490218
epoch: 5 / loss: 0.04188228
epoch: 6 / loss: 0.041391663
epoch: 7 / loss: 0.041031186
epoch: 8 / loss: 0.040655673
epoch: 9 / loss: 0.04040248
epoch: 10 / loss: 0.040120468

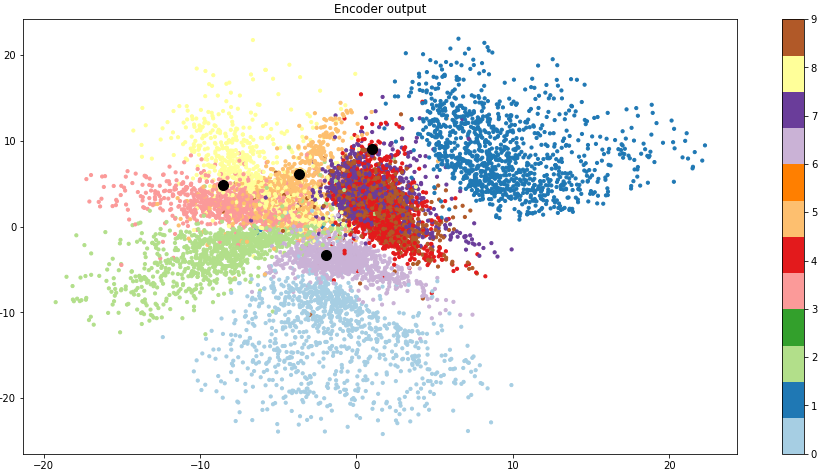

테스트 데이터로 2차원 표현 벡터를 산점도로 나타내고 무작위 데이터의 포인트를 확인합니다.

import matplotlib.pyplot as plt

encoder_output = model.encode(x_test)

plt.figure(figsize=(16, 8))
plt.scatter(encoder_output[:, 0], encoder_output[:, 1], c=y_test, cmap=plt.get_cmap('Paired'), s=10)
plt.colorbar()
plt.title('Encoder output')

n = 4
idx = np.random.choice(range(len(x_test)), n)

encoder_output = model.encode(x_test[idx])
decoder_output = model.decode(x_test[idx])

plt.scatter(encoder_output[:, 0], encoder_output[:, 1], c='black', s=100)
plt.show()

fig, axs = plt.subplots(n, 2, constrained_layout=True, sharey=True, figsize=(5, 5))

for i in range(n):
    axs[i][0].imshow(x_test[idx][i], aspect='auto', cmap='gray')
    axs[i][0].axis('off')
    axs[i][1].imshow(decoder_output[i], aspect='auto', cmap='gray')
    axs[i][1].axis('off')

    if i == 0:
        axs[i][0].set_title('True')
        axs[i][1].set_title('Prediction')

plt.show()

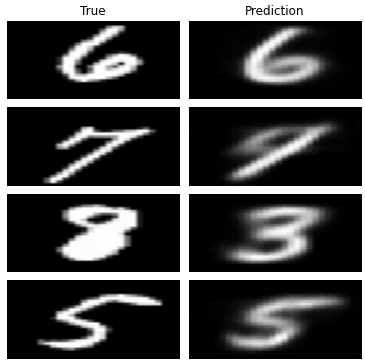

군집화가 명확하지 않은 영역에 대한 복원은 잘 이루어지지 않는 것을 볼 수 있습니다.

2020/11/13 - [머신러닝/딥러닝] - 합성곱 신경망(Convolutional Neural Network)

드롭아웃(Dropout)

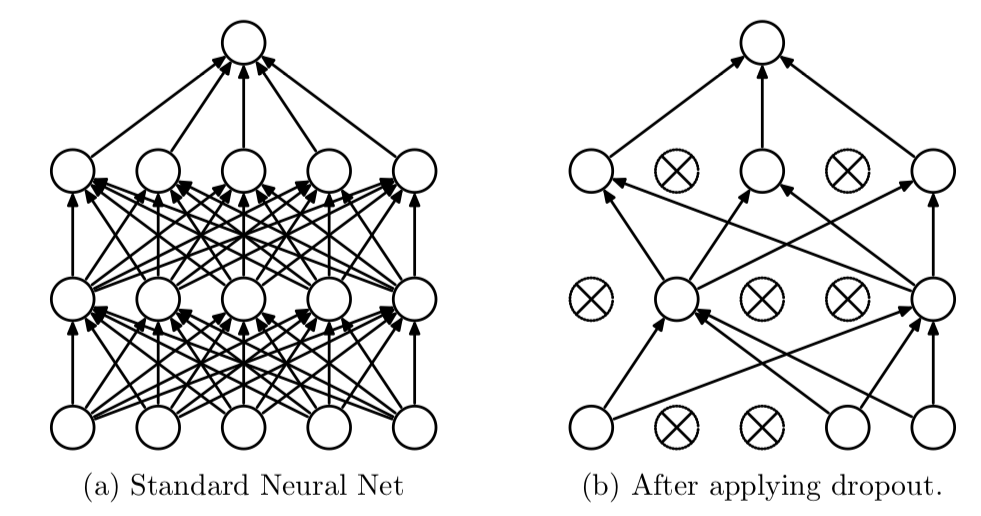

과대적합을 억제하는 기법으로 무작위로 일부 뉴런 혹은 유닛을 비활성화합니다. 이에 따라 일부 유닛을 과도하게 의존하는 것을 방지하는 것입니다. 이러한 드롭아웃은 학습시에 적용하고 테스트에는 모든 유닛을 활성화합니다.

구현

합성곱 신경망 모델에 드롭아웃을 적용합니다.

패션 MNIST 데이터셋을 불러옵니다.

import numpy as np
from tensorflow.keras import datasets

(x_train, y_train), (x_test, y_test) = datasets.fashion_mnist.load_data()

print('data shape:', x_train.shape)

print('target shape:', y_train.shape)
print('target label:', np.unique(y_train, return_counts=True))

data shape: (60000, 28, 28)
target shape: (60000,)
target label: (array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9], dtype=uint8), array([6000, 6000, 6000, 6000, 6000, 6000, 6000, 6000, 6000, 6000],
      dtype=int64))

데이터 형태를 변형합니다.

x_train = x_train.reshape(60000, 28, 28, 1)
x_test = x_test.reshape(10000, 28, 28, 1)

학습 데이터의 20%를 검증 데이터로 분할합니다.

from sklearn.model_selection import train_test_split

x_train, x_val, y_train, y_val = train_test_split(x_train, y_train, test_size=0.2)

신경망을 정의합니다.

import numpy as np
import tensorflow as tf

class Model:
    def __init__(self, lr=1e-3):
        tf.reset_default_graph()

        with tf.name_scope('input'):
            self.x = tf.placeholder(tf.float32, [None, 28, 28, 1])
            self.y = tf.placeholder(tf.int64)
            self.dropout_rate = tf.placeholder(tf.float32)

        with tf.name_scope('preprocessing'):
            x_norm = self.x / 255.0
            y_onehot = tf.one_hot(self.y, 10)

        with tf.name_scope('layer'):
            conv1 = tf.layers.conv2d(x_norm, 32, [3, 3], padding='VALID', activation=tf.nn.relu)
            pool1 = tf.layers.max_pooling2d(conv1, [2, 2], [2, 2], padding='VALID')
            conv2 = tf.layers.conv2d(pool1, 64, [3, 3], padding='VALID', activation=tf.nn.relu)
            pool2 = tf.layers.max_pooling2d(conv2, [2, 2], [2, 2], padding='VALID')
            flat = tf.layers.flatten(pool2)
            dropout = tf.nn.dropout(flat, self.dropout_rate)
            fc = tf.layers.dense(dropout, 64, tf.nn.relu)
            logits = tf.layers.dense(fc, 10)

        with tf.name_scope('output'):
            self.predict = tf.argmax(tf.nn.softmax(logits), 1)

        with tf.name_scope('accuracy'):
            self.accuracy = tf.reduce_mean(tf.cast(tf.equal(tf.to_int64(self.predict), self.y), dtype=tf.float32))

        with tf.name_scope('loss'):
            cross_entropy = tf.nn.softmax_cross_entropy_with_logits_v2(labels=y_onehot, logits=logits)
            self.loss = tf.reduce_mean(cross_entropy)

        with tf.name_scope('optimizer'):
            self.train_op = tf.train.AdamOptimizer(lr).minimize(self.loss)

        with tf.name_scope('summary'):
            self.summary_loss = tf.placeholder(tf.float32)
            self.summary_accuracy = tf.placeholder(tf.float32)

            tf.summary.scalar('loss', self.summary_loss)
            tf.summary.scalar('accuracy', self.summary_accuracy)

            self.merge = tf.summary.merge_all()

        self.train_writer = tf.summary.FileWriter('./tmp/cnn_fashion_mnist/dropout_train', tf.get_default_graph())
        self.val_writer = tf.summary.FileWriter('./tmp/cnn_fashion_mnist/dropout_val', tf.get_default_graph())

        self.sess = tf.Session()

        self.sess.run(tf.global_variables_initializer())

    def write_summary(self, tl, ta, vl, va, epoch):
        train_summary = self.sess.run(self.merge, {self.summary_loss: tl, self.summary_accuracy: ta})
        val_summary = self.sess.run(self.merge, {self.summary_loss: vl, self.summary_accuracy: va})

        self.train_writer.add_summary(train_summary, epoch)
        self.val_writer.add_summary(val_summary, epoch)

    def train(self, x_train, y_train, x_val, y_val, epochs, batch_size=32):
        data_size = len(x_train)
        for e in range(epochs):
            t_l, t_a = [], []

            idx = np.random.permutation(np.arange(data_size))
            _x_train, _y_train = x_train[idx], y_train[idx]

            for i in range(0, data_size, batch_size):
                si, ei = i, i + batch_size
                if ei > data_size:
                    ei = data_size

                x_batch, y_batch = _x_train[si:ei, :, :], _y_train[si:ei]

                tl, ta, _ = self.sess.run([self.loss, self.accuracy, self.train_op], {self.x: x_batch, self.y: y_batch, self.dropout_rate: 0.5})
                t_l.append(tl)
                t_a.append(ta)

            vl, va = self.sess.run([self.loss, self.accuracy], {self.x: x_val, self.y: y_val, self.dropout_rate: 1.0})

            self.write_summary(np.mean(t_l), np.mean(t_a), vl, va, e)

            print('epoch:', e + 1, ' / train_loss:', np.mean(t_l), '/ train_acc:', np.mean(t_a), ' / val_loss:', vl, '/ val_acc:', va)

    def score(self, x, y):
        return self.sess.run(self.accuracy, {self.x: x, self.y: y, self.dropout_rate: 1.0})

드롭아웃층은 유닛을 유지하는 비율을 지정합니다.(tf.nn.dropout)

with tf.name_scope('input'):
    self.x = tf.placeholder(tf.float32, [None, 28, 28, 1])
    self.y = tf.placeholder(tf.int64)
    self.dropout_rate = tf.placeholder(tf.float32)

...

with tf.name_scope('layer'):
    conv1 = tf.layers.conv2d(x_norm, 32, [3, 3], padding='VALID', activation=tf.nn.relu)
    pool1 = tf.layers.max_pooling2d(conv1, [2, 2], [2, 2], padding='VALID')
    conv2 = tf.layers.conv2d(pool1, 64, [3, 3], padding='VALID', activation=tf.nn.relu)
    pool2 = tf.layers.max_pooling2d(conv2, [2, 2], [2, 2], padding='VALID')
    flat = tf.layers.flatten(pool2)
    dropout = tf.nn.dropout(flat, self.dropout_rate)
    fc = tf.layers.dense(dropout, 64, tf.nn.relu)
    logits = tf.layers.dense(fc, 10)

비율을 0.3으로 지정한다면 무작위 유닛 70%을 비활성화합니다. 테스트 및 검증에는 1.0으로 지정하여 모든 유닛을 활성화합니다.

모델을 학습하고 테스트합니다.

model = Model()
model.train(x_train, y_train, x_val, y_val, epochs=20)
model.score(x_test, y_test)

epoch: 1  / train_loss: 0.54586285 / train_acc: 0.8024167  / val_loss: 0.3937745 / val_acc: 0.8516667
epoch: 2  / train_loss: 0.37997714 / train_acc: 0.861  / val_loss: 0.32430208 / val_acc: 0.88058335
epoch: 3  / train_loss: 0.33082 / train_acc: 0.8768542  / val_loss: 0.3169227 / val_acc: 0.88075
epoch: 4  / train_loss: 0.3031651 / train_acc: 0.8883333  / val_loss: 0.28263652 / val_acc: 0.8961667
epoch: 5  / train_loss: 0.27801484 / train_acc: 0.89666665  / val_loss: 0.2777464 / val_acc: 0.896
epoch: 6  / train_loss: 0.26787764 / train_acc: 0.89902085  / val_loss: 0.28193024 / val_acc: 0.8936667
epoch: 7  / train_loss: 0.25405225 / train_acc: 0.904875  / val_loss: 0.26641348 / val_acc: 0.90258336
epoch: 8  / train_loss: 0.24449031 / train_acc: 0.9074375  / val_loss: 0.26794034 / val_acc: 0.89975
epoch: 9  / train_loss: 0.23362926 / train_acc: 0.91216666  / val_loss: 0.25061563 / val_acc: 0.90791667
epoch: 10  / train_loss: 0.2289409 / train_acc: 0.9132917  / val_loss: 0.25986716 / val_acc: 0.90566665
epoch: 11  / train_loss: 0.21823755 / train_acc: 0.9184375  / val_loss: 0.2457858 / val_acc: 0.9076667
epoch: 12  / train_loss: 0.21376282 / train_acc: 0.918375  / val_loss: 0.25176075 / val_acc: 0.9073333
epoch: 13  / train_loss: 0.21100517 / train_acc: 0.92108333  / val_loss: 0.252951 / val_acc: 0.90783334
epoch: 14  / train_loss: 0.20125681 / train_acc: 0.9237083  / val_loss: 0.25745368 / val_acc: 0.90758336
epoch: 15  / train_loss: 0.19526783 / train_acc: 0.9266667  / val_loss: 0.24359514 / val_acc: 0.9130833
epoch: 16  / train_loss: 0.19302467 / train_acc: 0.9270833  / val_loss: 0.23960693 / val_acc: 0.91116667
epoch: 17  / train_loss: 0.18864958 / train_acc: 0.92808336  / val_loss: 0.24460652 / val_acc: 0.91275
epoch: 18  / train_loss: 0.18488875 / train_acc: 0.9294583  / val_loss: 0.23526335 / val_acc: 0.9159167
epoch: 19  / train_loss: 0.17939131 / train_acc: 0.932125  / val_loss: 0.2448088 / val_acc: 0.9115
epoch: 20  / train_loss: 0.17674284 / train_acc: 0.93214583  / val_loss: 0.23607413 / val_acc: 0.9155833

0.9164

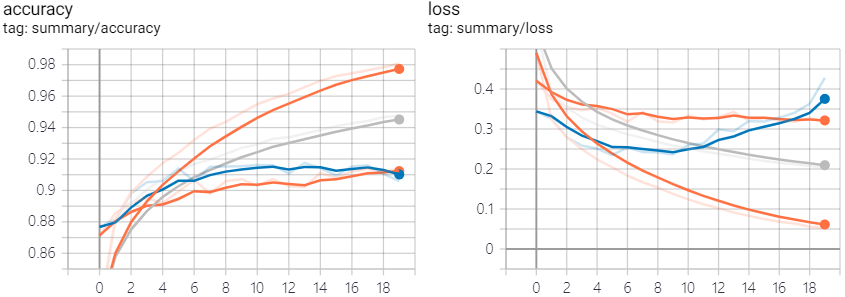

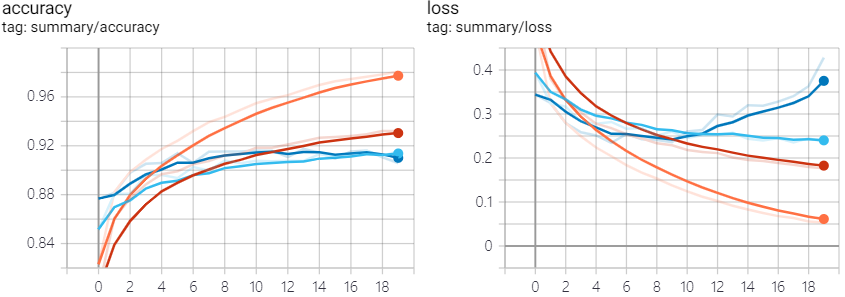

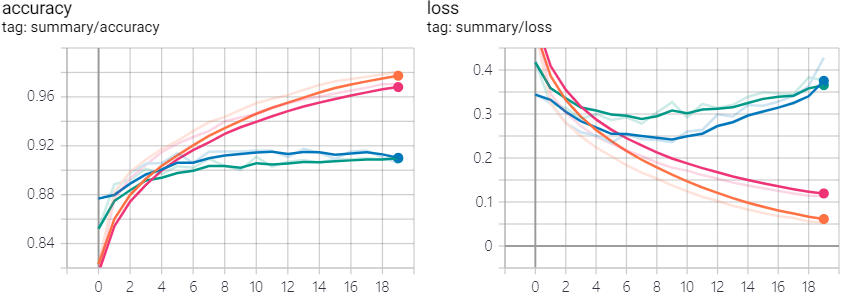

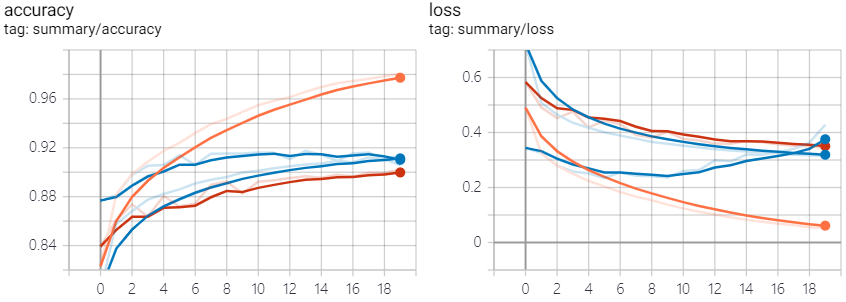

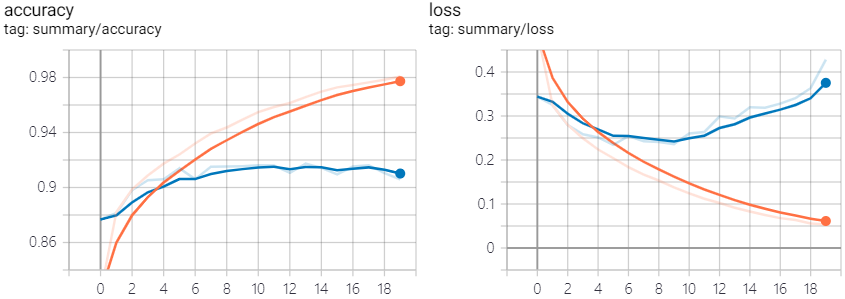

에포크에 대한 정확도와 손실 함수의 그래프는 다음과 같습니다. (주황: 학습, 파랑: 검증, 빨강: 드롭아웃 학습, 하늘: 드롭아웃 검증)

드롭아웃을 적용하여 과대적합이 발생하지 않으며 성능이 소폭 향상되었습니다.

2020/11/13 - [머신러닝/딥러닝] - 합성곱 신경망(Convolutional Neural Network)

가중치 규제(Weight Regularization)

가중치의 값이 커지지 않도록 제한하는 기법으로 과대적합(overfitting)을 억제합니다. 손실 함수에 norm을 추가하는 것으로 대표적으로 L1 규제와 L2 규제가 있습니다.

L1 규제는 손실 함수에 L1 norm을 추가하는 것입니다.

$ L + \alpha \left| \left| w \right| \right|_1 $

L1 norm은 가중치의 절대값을 더한 값이며,  $ \alpha $ 는 규제의 양을 조절하는 파라미터입니다.

$ \left| \left| w \right| \right|_1 = \displaystyle \sum_{i=1}^n \left| w_i \right| $

경사 하강법을 이용한 업데이트 식은 다음과 같습니다.

$\begin{aligned}
w' & = w + { \partial \over \partial w } L + \color{ red }{ { \partial \over \partial w } \alpha \ \displaystyle \sum_{i=1}^n \left| w_i \right| } \\
& = w + { \partial \over \partial w } L + \color{ red }{ \alpha \ sign(w) }
\end{aligned}$

$ \left| w \right| $ 을 미분하면 부호만 남습니다. $ sign(w) $ 은 $ w $ 의 부호라는 의미입니다.

L2 규제는 손실 함수에 L2 norm을 추가하는 것입니다.

$ L + \alpha \ \left| \left| w \right| \right|_2 $

L2 norm은 가중치의 제곱을 더한 값이며,  $ \alpha $ 는 규제의 양을 조절하는 파라미터입니다.

$ \left| \left| w \right| \right|_2 = { 1 \over 2 } \displaystyle \sum_{i=1}^n \left| w_i \right|^2 $

경사 하강법을 이용한 업데이트 식은 다음과 같습니다.

$\begin{aligned}
w' & = w + { \partial \over \partial w } L + \color{ red }{ { \partial \over \partial w } { 1 \over 2 } \alpha \ \displaystyle \sum_{i=1}^n \left| w_i \right|^2 }\\
& = w + { \partial \over \partial w } L + \color{ red }{ \alpha \ w }
\end{aligned}$

텐서플로에서 제공하는 규제를 이용할 수 있습니다. (tf.contrib.layers.l2_regularizer)

import tensorflow as tf

tf.reset_default_graph()

x = tf.placeholder(tf.float32, [None, 1])

reg1 = tf.contrib.layers.l1_regularizer(scale=0.1)
reg2 = tf.contrib.layers.l2_regularizer(scale=0.1)

fc1 = tf.layers.dense(x, 2, kernel_regularizer=reg1)
fc2 = tf.layers.dense(x, 2, kernel_regularizer=reg2)

vars = tf.trainable_variables()
norm = tf.get_collection(tf.GraphKeys.REGULARIZATION_LOSSES)

with tf.Session() as sess:
    sess.run(tf.global_variables_initializer())
    w1 = sess.run(vars[0])
    w2 = sess.run(vars[2])
    norm_ = sess.run(norm, {x: [[1.]]})

    print('weights')
    print(w1)
    print(w2)
    print()

    print('L1 norm')
    print(norm_[0], np.sum(abs(w1)) * 0.1)
    print('L2 norm')
    print(norm_[1], np.sum(np.square(w2))* 0.5 * 0.1)

weights
[[-0.5047436  1.1104265]]
[[-0.5299379   0.07715666]]

L1 norm
0.16151701 0.16151701211929323
L2 norm
0.014339368 0.014339368045330049

신경망의 손실 함수에 추가할 norm은 규제가 적용된 가중치의 합으로 구합니다.

import tensorflow as tf

tf.reset_default_graph()

x = tf.placeholder(tf.float32, [None, 1])

reg = tf.contrib.layers.l2_regularizer(scale=0.1)

fc1 = tf.layers.dense(x, 2, kernel_regularizer=reg)
fc2 = tf.layers.dense(x, 2, kernel_regularizer=reg)

vars = tf.trainable_variables()
norm = tf.get_collection(tf.GraphKeys.REGULARIZATION_LOSSES)

with tf.Session() as sess:
    sess.run(tf.global_variables_initializer())
    w1 = sess.run(vars[0])
    w2 = sess.run(vars[2])
    fc1_ = np.sum(np.square(w1))* 0.5 * 0.1
    fc2_ = np.sum(np.square(w2))* 0.5 * 0.1
    norm_ = sess.run(norm, {x: [[1.]]})

    print('weights')
    print(w1)
    print(w2)
    print()

    print('norm')
    print(np.sum(norm_))
    print(fc1_ + fc2_)

weights
[[0.26062596 0.3645985 ]]
[[-0.8904719 -0.8322536]]

norm
0.08432221
0.08432220667600632

구현

합성곱 신경망 모델에 L2 규제를 적용합니다.

패션 MNIST 데이터셋을 불러옵니다.

import numpy as np
from tensorflow.keras import datasets

(x_train, y_train), (x_test, y_test) = datasets.fashion_mnist.load_data()

print('data shape:', x_train.shape)

print('target shape:', y_train.shape)
print('target label:', np.unique(y_train, return_counts=True))

data shape: (60000, 28, 28)
target shape: (60000,)
target label: (array([0, 1, 2, 3, 4, 5, 6, 7, 8, 9], dtype=uint8), array([6000, 6000, 6000, 6000, 6000, 6000, 6000, 6000, 6000, 6000],
      dtype=int64))

데이터 형태를 변형합니다.

x_train = x_train.reshape(60000, 28, 28, 1)
x_test = x_test.reshape(10000, 28, 28, 1)

학습 데이터의 20%를 검증 데이터로 분할합니다.

from sklearn.model_selection import train_test_split

x_train, x_val, y_train, y_val = train_test_split(x_train, y_train, test_size=0.2)

신경망을 정의합니다.

import numpy as np
import tensorflow as tf

class Model:
    def __init__(self, lr=1e-3, reg=False, lambda_reg=0.01, path_name=''):
        tf.reset_default_graph()

        regularizer=None
        if reg:
            regularizer = tf.contrib.layers.l2_regularizer(scale=lambda_reg)

        with tf.name_scope('input'):
            self.x = tf.placeholder(tf.float32, [None, 28, 28, 1])
            self.y = tf.placeholder(tf.int64)

        with tf.name_scope('preprocessing'):
            x_norm = self.x / 255.0
            y_onehot = tf.one_hot(self.y, 10)

        with tf.name_scope('layer'):
            conv1 = tf.layers.conv2d(x_norm, 32, [3, 3], padding='VALID', activation=tf.nn.relu)
            pool1 = tf.layers.max_pooling2d(conv1, [2, 2], [2, 2], padding='VALID')
            conv2 = tf.layers.conv2d(pool1, 64, [3, 3], padding='VALID', activation=tf.nn.relu)
            pool2 = tf.layers.max_pooling2d(conv2, [2, 2], [2, 2], padding='VALID')
            flat = tf.layers.flatten(pool2)

            fc = tf.layers.dense(flat, 64, tf.nn.relu, kernel_regularizer=regularizer)
            logits = tf.layers.dense(fc, 10, kernel_regularizer=regularizer)

        with tf.name_scope('output'):
            self.predict = tf.argmax(tf.nn.softmax(logits), 1)

        with tf.name_scope('accuracy'):
            self.accuracy = tf.reduce_mean(tf.cast(tf.equal(tf.to_int64(self.predict), self.y), dtype=tf.float32))

        with tf.name_scope('loss'):
            cross_entropy = tf.nn.softmax_cross_entropy_with_logits_v2(labels=y_onehot, logits=logits)
            self.loss = tf.reduce_mean(cross_entropy)
            if reg:
                norm = tf.get_collection(tf.GraphKeys.REGULARIZATION_LOSSES)
                self.loss += tf.reduce_sum(norm)

        with tf.name_scope('optimizer'):
            self.train_op = tf.train.AdamOptimizer(lr).minimize(self.loss)

        with tf.name_scope('summary'):
            self.summary_loss = tf.placeholder(tf.float32)
            self.summary_accuracy = tf.placeholder(tf.float32)

            tf.summary.scalar('loss', self.summary_loss)
            tf.summary.scalar('accuracy', self.summary_accuracy)

            self.merge = tf.summary.merge_all()

        self.train_writer = tf.summary.FileWriter('./tmp/cnn_fashion_mnist/' + path_name + 'train', tf.get_default_graph())
        self.val_writer = tf.summary.FileWriter('./tmp/cnn_fashion_mnist/' + path_name + 'val', tf.get_default_graph())

        self.sess = tf.Session()

        self.sess.run(tf.global_variables_initializer())

    def write_summary(self, tl, ta, vl, va, epoch):
        train_summary = self.sess.run(self.merge, {self.summary_loss: tl, self.summary_accuracy: ta})
        val_summary = self.sess.run(self.merge, {self.summary_loss: vl, self.summary_accuracy: va})

        self.train_writer.add_summary(train_summary, epoch)
        self.val_writer.add_summary(val_summary, epoch)

    def train(self, x_train, y_train, x_val, y_val, epochs, batch_size=32):
        data_size = len(x_train)
        for e in range(epochs):
            t_l, t_a = [], []

            idx = np.random.permutation(np.arange(data_size))
            _x_train, _y_train = x_train[idx], y_train[idx]

            for i in range(0, data_size, batch_size):
                si, ei = i, i + batch_size
                if ei > data_size:
                    ei = data_size

                x_batch, y_batch = _x_train[si:ei, :, :], _y_train[si:ei]

                tl, ta, _ = self.sess.run([self.loss, self.accuracy, self.train_op], {self.x: x_batch, self.y: y_batch})
                t_l.append(tl)
                t_a.append(ta)

            vl, va = self.sess.run([self.loss, self.accuracy], {self.x: x_val, self.y: y_val})

            self.write_summary(np.mean(t_l), np.mean(t_a), vl, va, e)

            print('epoch:', e + 1, ' / train_loss:', np.mean(t_l), '/ train_acc:', np.mean(t_a), ' / val_loss:', vl, '/ val_acc:', va)

    def score(self, x, y):
        return self.sess.run(self.accuracy, {self.x: x, self.y: y})

규제를 정의합니다.

regularizer=None
if reg:
    regularizer = tf.contrib.layers.l2_regularizer(scale=lambda_reg)

규제를 적용할 층에 매개변수로 지정합니다.

with tf.name_scope('layer'):
    conv1 = tf.layers.conv2d(x_norm, 32, [3, 3], padding='VALID', activation=tf.nn.relu)
    pool1 = tf.layers.max_pooling2d(conv1, [2, 2], [2, 2], padding='VALID')
    conv2 = tf.layers.conv2d(pool1, 64, [3, 3], padding='VALID', activation=tf.nn.relu)
    pool2 = tf.layers.max_pooling2d(conv2, [2, 2], [2, 2], padding='VALID')
    flat = tf.layers.flatten(pool2)

    ## regularizer ##
    fc = tf.layers.dense(flat, 64, tf.nn.relu, kernel_regularizer=regularizer)
    logits = tf.layers.dense(fc, 10, kernel_regularizer=regularizer)

손실 함수에 norm을 추가합니다.

with tf.name_scope('loss'):
    cross_entropy = tf.nn.softmax_cross_entropy_with_logits_v2(labels=y_onehot, logits=logits)
    self.loss = tf.reduce_mean(cross_entropy)
    if reg:
        norm = tf.get_collection(tf.GraphKeys.REGULARIZATION_LOSSES)
        self.loss += tf.reduce_sum(norm)

규제를 적용하지 않은 모델을 학습하고 테스트합니다.

model = Model()
model.train(x_train, y_train, x_val, y_val, epochs=20)
model.score(x_test, y_test)

epoch: 1  / train_loss: 0.4899995 / train_acc: 0.82308334  / val_loss: 0.34418163 / val_acc: 0.87675
epoch: 2  / train_loss: 0.32420996 / train_acc: 0.8821458  / val_loss: 0.32503137 / val_acc: 0.8814167
epoch: 3  / train_loss: 0.2795372 / train_acc: 0.89872915  / val_loss: 0.27930364 / val_acc: 0.8980833
epoch: 4  / train_loss: 0.24964015 / train_acc: 0.9086667  / val_loss: 0.25830066 / val_acc: 0.90525
epoch: 5  / train_loss: 0.22372074 / train_acc: 0.91735417  / val_loss: 0.25123677 / val_acc: 0.9059167
epoch: 6  / train_loss: 0.20405148 / train_acc: 0.92397916  / val_loss: 0.23442969 / val_acc: 0.91391665
epoch: 7  / train_loss: 0.18366154 / train_acc: 0.93202084  / val_loss: 0.25422248 / val_acc: 0.906
epoch: 8  / train_loss: 0.16686963 / train_acc: 0.93939584  / val_loss: 0.24268445 / val_acc: 0.91508335
epoch: 9  / train_loss: 0.1534329 / train_acc: 0.94364583  / val_loss: 0.24112262 / val_acc: 0.91525
epoch: 10  / train_loss: 0.13780946 / train_acc: 0.9493542  / val_loss: 0.23617037 / val_acc: 0.91541666
epoch: 11  / train_loss: 0.12407387 / train_acc: 0.9548333  / val_loss: 0.26025593 / val_acc: 0.91616666
epoch: 12  / train_loss: 0.112011366 / train_acc: 0.9585417  / val_loss: 0.2636378 / val_acc: 0.916
epoch: 13  / train_loss: 0.10216832 / train_acc: 0.96141666  / val_loss: 0.2987651 / val_acc: 0.91066664
epoch: 14  / train_loss: 0.09138283 / train_acc: 0.9656875  / val_loss: 0.29418647 / val_acc: 0.9174167
epoch: 15  / train_loss: 0.08280988 / train_acc: 0.96975  / val_loss: 0.31967795 / val_acc: 0.91425
epoch: 16  / train_loss: 0.075191446 / train_acc: 0.97283334  / val_loss: 0.3187853 / val_acc: 0.9095
epoch: 17  / train_loss: 0.06787912 / train_acc: 0.9746042  / val_loss: 0.3280637 / val_acc: 0.91525
epoch: 18  / train_loss: 0.06372369 / train_acc: 0.9764583  / val_loss: 0.34051234 / val_acc: 0.91608334
epoch: 19  / train_loss: 0.05584117 / train_acc: 0.9784167  / val_loss: 0.36320615 / val_acc: 0.9105
epoch: 20  / train_loss: 0.053313486 / train_acc: 0.9807708  / val_loss: 0.42804903 / val_acc: 0.9059167

0.8992

10 에포크 이후에 과대적합이 발생합니다.

규제의 양을 조절하는 파라미터 값 0.0001, 0.001, 0.01을 비교합니다.

파라미터 값을 0.0001로 지정한 경우에는 규제의 강도가 미비하여 과대적합이 발생합니다.

model = Model(reg=True, lambda_reg=0.0001, path_name='weight_decay_0.0001_')
model.train(x_train, y_train, x_val, y_val, epochs=20)
model.score(x_test, y_test)

epoch: 1  / train_loss: 0.51481104 / train_acc: 0.8163125  / val_loss: 0.41753772 / val_acc: 0.85225
epoch: 2  / train_loss: 0.345886 / train_acc: 0.8766875  / val_loss: 0.32372278 / val_acc: 0.88841665
epoch: 3  / train_loss: 0.30285904 / train_acc: 0.89360416  / val_loss: 0.31370842 / val_acc: 0.89208335
epoch: 4  / train_loss: 0.27255118 / train_acc: 0.9043125  / val_loss: 0.28951547 / val_acc: 0.90108335
epoch: 5  / train_loss: 0.24855728 / train_acc: 0.91485417  / val_loss: 0.29960057 / val_acc: 0.89675
epoch: 6  / train_loss: 0.23295376 / train_acc: 0.92170835  / val_loss: 0.28628847 / val_acc: 0.90316665
epoch: 7  / train_loss: 0.21696827 / train_acc: 0.9271875  / val_loss: 0.2921477 / val_acc: 0.902
epoch: 8  / train_loss: 0.20461519 / train_acc: 0.9319792  / val_loss: 0.27835524 / val_acc: 0.90925
epoch: 9  / train_loss: 0.1896936 / train_acc: 0.939875  / val_loss: 0.3034753 / val_acc: 0.90358335
epoch: 10  / train_loss: 0.17822354 / train_acc: 0.94325  / val_loss: 0.3268171 / val_acc: 0.9
epoch: 11  / train_loss: 0.17124838 / train_acc: 0.94602084  / val_loss: 0.2925508 / val_acc: 0.91108334
epoch: 12  / train_loss: 0.1610266 / train_acc: 0.95104164  / val_loss: 0.32277325 / val_acc: 0.90291667
epoch: 13  / train_loss: 0.15321763 / train_acc: 0.9546458  / val_loss: 0.31398556 / val_acc: 0.907
epoch: 14  / train_loss: 0.1440719 / train_acc: 0.95783335  / val_loss: 0.32070822 / val_acc: 0.90833336
epoch: 15  / train_loss: 0.13773532 / train_acc: 0.960125  / val_loss: 0.33933806 / val_acc: 0.90608335
epoch: 16  / train_loss: 0.13126785 / train_acc: 0.96283334  / val_loss: 0.34860352 / val_acc: 0.90891665
epoch: 17  / train_loss: 0.12526983 / train_acc: 0.96520835  / val_loss: 0.3467158 / val_acc: 0.909
epoch: 18  / train_loss: 0.119342156 / train_acc: 0.9675625  / val_loss: 0.34521878 / val_acc: 0.9098333
epoch: 19  / train_loss: 0.11426294 / train_acc: 0.9703125  / val_loss: 0.38304567 / val_acc: 0.90875
epoch: 20  / train_loss: 0.11378552 / train_acc: 0.9705625  / val_loss: 0.37654424 / val_acc: 0.91125

0.9094

파라미터 값을 0.001로 지정한 경우에는 과대적합이 발생하지 않으며 성능이 소폭 향상되었습니다.

model = Model(reg=True, lambda_reg=0.001, path_name='weight_decay_0.001_')
model.train(x_train, y_train, x_val, y_val, epochs=20)
model.score(x_test, y_test)

epoch: 1  / train_loss: 0.55039114 / train_acc: 0.8218333  / val_loss: 0.4208436 / val_acc: 0.87133336
epoch: 2  / train_loss: 0.39176953 / train_acc: 0.87941664  / val_loss: 0.37457174 / val_acc: 0.88558334
epoch: 3  / train_loss: 0.3536052 / train_acc: 0.8917292  / val_loss: 0.3548428 / val_acc: 0.89208335
epoch: 4  / train_loss: 0.3287368 / train_acc: 0.90052086  / val_loss: 0.34722483 / val_acc: 0.8950833
epoch: 5  / train_loss: 0.31021914 / train_acc: 0.907625  / val_loss: 0.35307658 / val_acc: 0.89208335
epoch: 6  / train_loss: 0.29850483 / train_acc: 0.9120625  / val_loss: 0.3384591 / val_acc: 0.89933336
epoch: 7  / train_loss: 0.28659913 / train_acc: 0.9167917  / val_loss: 0.31821793 / val_acc: 0.9065833
epoch: 8  / train_loss: 0.27779076 / train_acc: 0.9196042  / val_loss: 0.34279007 / val_acc: 0.8980833
epoch: 9  / train_loss: 0.26766524 / train_acc: 0.9232708  / val_loss: 0.3185545 / val_acc: 0.9059167
epoch: 10  / train_loss: 0.25809973 / train_acc: 0.9271042  / val_loss: 0.31635404 / val_acc: 0.90716666
epoch: 11  / train_loss: 0.2516942 / train_acc: 0.9291667  / val_loss: 0.33354875 / val_acc: 0.9030833
epoch: 12  / train_loss: 0.24395902 / train_acc: 0.93291664  / val_loss: 0.3235069 / val_acc: 0.90716666
epoch: 13  / train_loss: 0.23825896 / train_acc: 0.93379164  / val_loss: 0.32964057 / val_acc: 0.9026667
epoch: 14  / train_loss: 0.23224322 / train_acc: 0.93604165  / val_loss: 0.34270942 / val_acc: 0.90216666
epoch: 15  / train_loss: 0.22589256 / train_acc: 0.93854165  / val_loss: 0.32007968 / val_acc: 0.91108334
epoch: 16  / train_loss: 0.21986204 / train_acc: 0.94083333  / val_loss: 0.32736585 / val_acc: 0.90816665
epoch: 17  / train_loss: 0.2155721 / train_acc: 0.9426875  / val_loss: 0.3209575 / val_acc: 0.912
epoch: 18  / train_loss: 0.211696 / train_acc: 0.94416666  / val_loss: 0.3179196 / val_acc: 0.91366667
epoch: 19  / train_loss: 0.20734118 / train_acc: 0.94677085  / val_loss: 0.32665992 / val_acc: 0.91225
epoch: 20  / train_loss: 0.2022699 / train_acc: 0.9475833  / val_loss: 0.31761256 / val_acc: 0.91358334

0.9106

파라미터 값을 0.01로 지정한 경우에는 규제의 강도가 커서 과소적합이 발생합니다.

model = Model(reg=True, lambda_reg=0.01, path_name='weight_decay_0.01_')
model.train(x_train, y_train, x_val, y_val, epochs=20)
model.score(x_test, y_test)

epoch: 1  / train_loss: 0.7216794 / train_acc: 0.8040625  / val_loss: 0.58291274 / val_acc: 0.83925
epoch: 2  / train_loss: 0.50784343 / train_acc: 0.8576667  / val_loss: 0.49030805 / val_acc: 0.8609167
epoch: 3  / train_loss: 0.4646731 / train_acc: 0.8681667  / val_loss: 0.4526889 / val_acc: 0.87375
epoch: 4  / train_loss: 0.43478292 / train_acc: 0.8775833  / val_loss: 0.47555774 / val_acc: 0.8635833
epoch: 5  / train_loss: 0.4173219 / train_acc: 0.8821458  / val_loss: 0.41809207 / val_acc: 0.8805
epoch: 6  / train_loss: 0.40076128 / train_acc: 0.88591665  / val_loss: 0.4433061 / val_acc: 0.87191665
epoch: 7  / train_loss: 0.38866675 / train_acc: 0.89079165  / val_loss: 0.43044075 / val_acc: 0.8745
epoch: 8  / train_loss: 0.3777382 / train_acc: 0.89391667  / val_loss: 0.39097238 / val_acc: 0.88958335
epoch: 9  / train_loss: 0.36583894 / train_acc: 0.8960417  / val_loss: 0.3819606 / val_acc: 0.89225
epoch: 10  / train_loss: 0.35933015 / train_acc: 0.8998333  / val_loss: 0.4025547 / val_acc: 0.8825833
epoch: 11  / train_loss: 0.35212287 / train_acc: 0.90122914  / val_loss: 0.37651968 / val_acc: 0.89225
epoch: 12  / train_loss: 0.34527814 / train_acc: 0.9032292  / val_loss: 0.37082198 / val_acc: 0.8933333
epoch: 13  / train_loss: 0.33904266 / train_acc: 0.9048125  / val_loss: 0.3604129 / val_acc: 0.89525
epoch: 14  / train_loss: 0.33481276 / train_acc: 0.9063333  / val_loss: 0.35880318 / val_acc: 0.89675
epoch: 15  / train_loss: 0.33108407 / train_acc: 0.90708333  / val_loss: 0.3690926 / val_acc: 0.8955
epoch: 16  / train_loss: 0.32683825 / train_acc: 0.9093958  / val_loss: 0.36419964 / val_acc: 0.8979167
epoch: 17  / train_loss: 0.3242014 / train_acc: 0.908125  / val_loss: 0.35681537 / val_acc: 0.8965833
epoch: 18  / train_loss: 0.31887272 / train_acc: 0.9120625  / val_loss: 0.3517346 / val_acc: 0.8995
epoch: 19  / train_loss: 0.31730837 / train_acc: 0.9111875  / val_loss: 0.3501565 / val_acc: 0.89933336
epoch: 20  / train_loss: 0.3142373 / train_acc: 0.9133125  / val_loss: 0.34369817 / val_acc: 0.90216666

0.9005

과소적합으로 학습과 검증의 학습 곡선의 간격이 가까운 것을 확인할 수 있습니다.
